Project description and technology

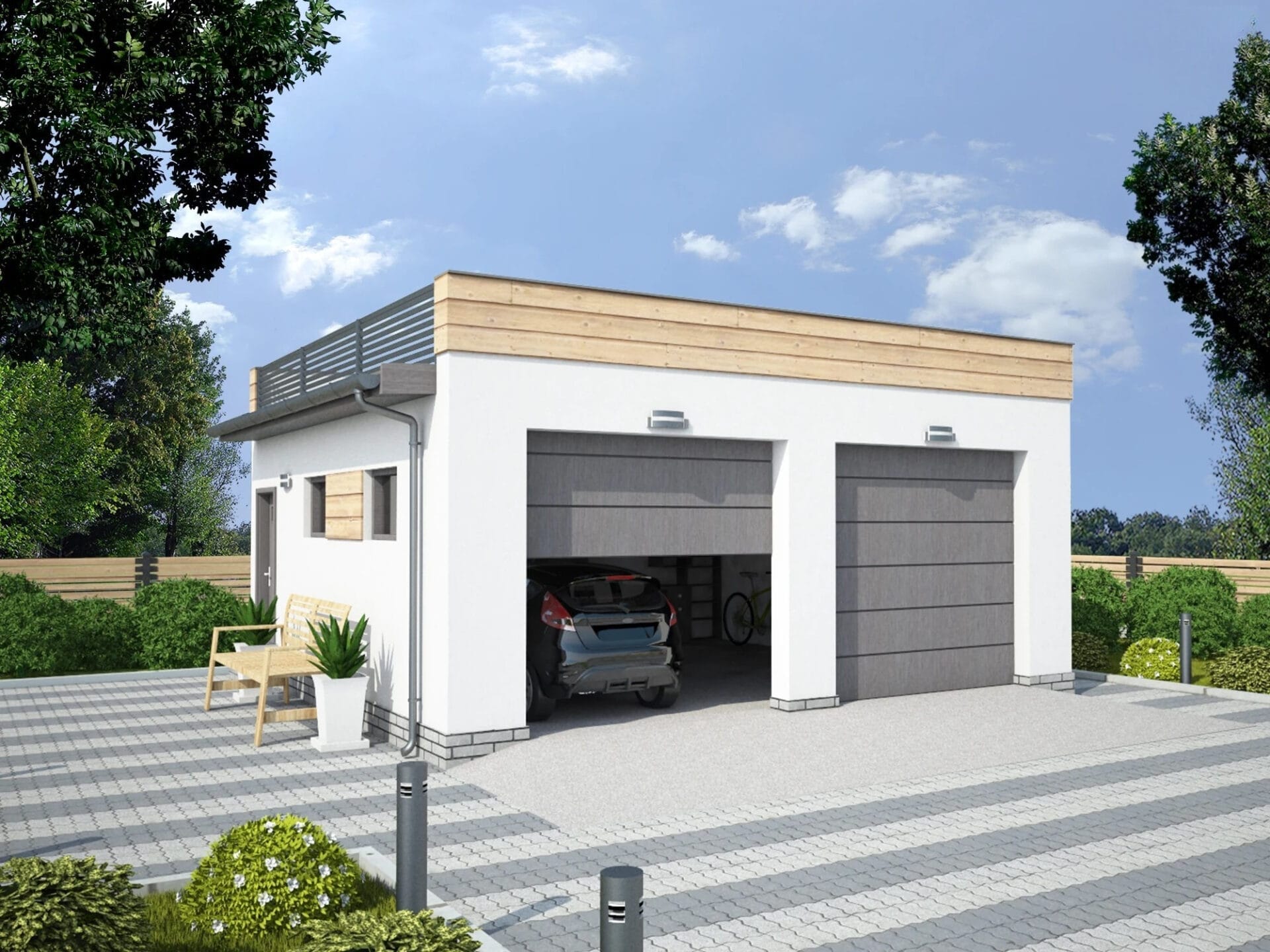

The building posida two garage doors with dimensions of 2.3×2.4m
The project includes a basic list of steel, wood and window and door joinery.
The project is accompanied by a free permission to make changes, a statement of the designers on the execution of the project in accordance with applicable standards and regulations, as well as photocopies of the authorizations of the designers with a current entry in the chamber.
Traditional technology: – usable area – 36,00m2 – built-up area – 42,25m2 – total area – 42,25m2 – cubic capacity – 156m3 – external load-bearing masonry walls 25cm thick – all walls made of “POROTHERM” ceramic blocks – height of the building 3,44m – gable roof 3° – wooden rafter framing – roofing: tar paper – dimensions of garage doors 2,3×2,4m Ask about the availability of the project in a frame version. In the projects we recommend: Porotherm, Koramic, Terca products of the company
Wienerberger; gates, drives and doors by
Hörmann; roof windows
VELUX; thermal insulation systems
TermoOrganika; heating systems Viessmann. For details on the various partitions, see the entry
Technologies Each of the
6 copies (3 architectural-construction projects and 3 technical projects) of the set of architectural-construction documentation with trades ordered from us

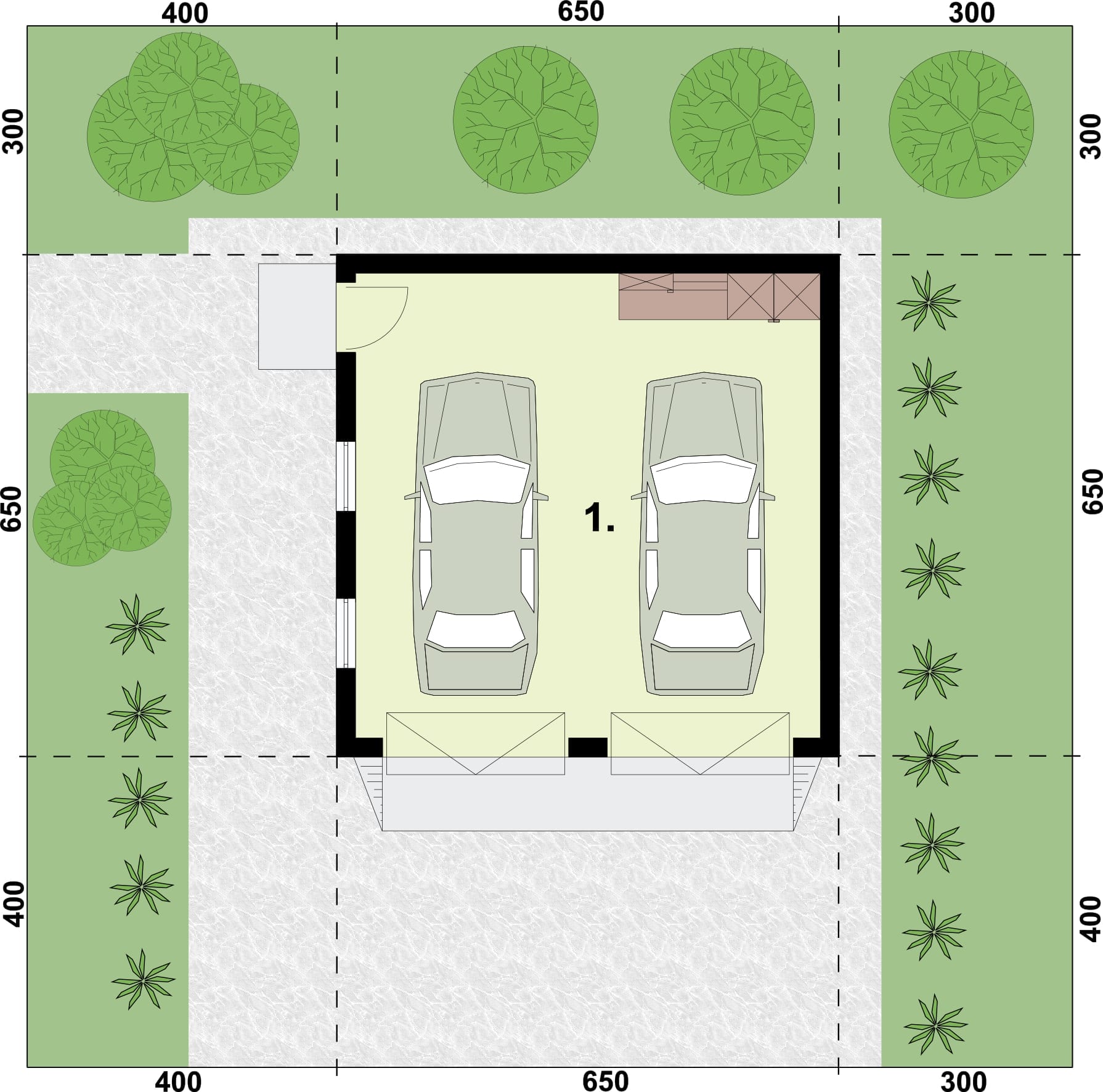

is sealed. You can find more information about seals here – Why do we seal the documentation? To make sure that the project fits the development conditions of your plot or the guidelines of the local plan, order detailed drawings (under the projection) and present them to the local adaptive designer (you can use the help of our representatives). Ground plan
| No. | Name | Pow. usable [m²] |
Pow. net [m²] |
|---|---|---|---|
| 1 | Garage | 35.64 | 35.64 |
| Total | 35.64 | 35.64 |
