SEVILLA the fact that this house is pleasing to the eye is due to, among other things.
among others.
a modern porch made of brick, which picturesquely highlights the entrance of the building.
Other assets of Sevilla are the garage and the terrace.
The former has been subtly attached to the left elevation, thus giving it an unusual shape; its slanted roof, which can also be found in the Atlanta project, is particularly noteworthy.
A classic-looking terrace interacting with semicircular steps, which are becoming more and more trendy in Poland every year, adorns the rear elevation.
Developing the largest of the rooms so that the living room, dining room and kitchen form a single unit and give the impression of functioning independently is no small task.
In this project such an effect has been achieved 100%, all thanks to an island with a built-in fireplace, whose task is to accentuate the already mentioned separation of rooms.
In addition, a toilet, a boiler room (which consists of two rooms) and a garage connected by a passageway to the residential part of the building have been located on the first floor.
Full comfort will be guaranteed by the bedrooms located on the first floor, and when you need a bit of relaxation after a hard day, take a hot bath in the exclusive bathroom also located on the same level.
In the projects we recommend: Porotherm, Koramic, Terca products of the company
Wienerberger; gates, drives and doors by
Hörmann; roof windows
VELUX; thermal insulation systems
TermoOrganika; heating systems Viessmann.
Technical data
| Usable area
+ garage
|
89.96 m²
20.52 m² |
| Built-up area | 99.90 m² |
| Net floor area | 0.00 m² |
| Total area | 97.74 m² |
| Cubic capacity | 544.18 m³ |
| Roof pitch angle | 43° |
| Dimensions of the building
length x width
|
13.20 x 8.10 m |
| Height of the building | 8.07 m |
| Min. plot dimensions length x width
|
18.55 x 20.20 m |
| Roof | gabled |
| Storey | with attic |
| Number of rooms | 10 |
| Pow. terraces/verandas/floors/exterior stairs. |
21.4 m² |
| Design with garage | Yes |
| Number of positions in the garage | 1 |
| Design with boiler room | Yes |

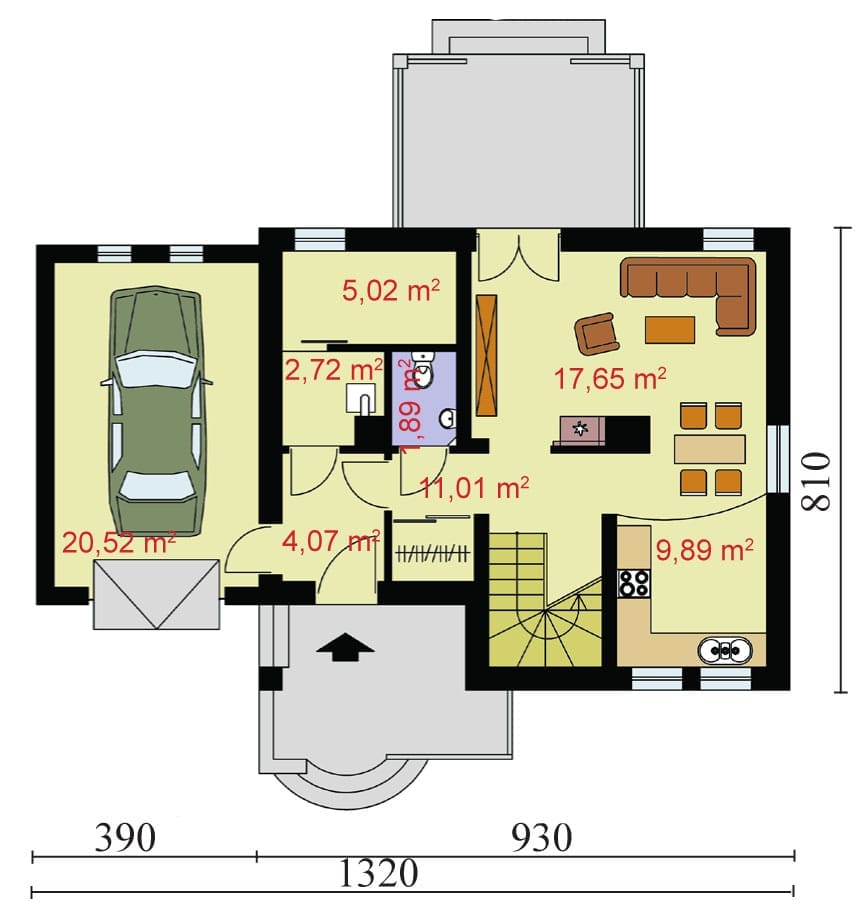

| No. | Name | Pow. usable [m²] |
Pow. net [m²] |
|---|---|---|---|
| Windmill | 4.07 | 0 | |
| Communication with dressing room | 11.01 | 0 | |
| Kitchen with dining room | 9.89 | 0 | |
| Living room | 17.65 | 0 | |
| Wc | 1.89 | 0 | |
| Boiler room | 2.72 | 0 | |
| Laundry | 5.02 | 0 | |
| Total | 52.25 | 0 | |
| Garage | 20.52 | 0 | |
| Total | 20.52 | 0 |
Attic
| No. | Name | Pow. usable [m²] |
Pow. net [m²] |
|---|---|---|---|
| Communications | 5.65 | 0 | |
| Room | 6.85 | 0 | |
| Bedroom | 8.59 | 0 | |
| Bathroom | 7.96 | 0 | |
| Room | 8.66 | 0 | |
| Total | 37.71 | 0 |
Section A-A
Section B-B
| Usable area | 89.96 m² |
| + garage | 20.52 m² |
| Min. plot dimensions length x width
|
18.55 x 20.20 m |
