Project description and technology
SANTORINI timber frame – project of a residential, one-story house with a usable attic and a garage The attention is attracted by a clear division into a living zone (first floor) and a night zone (attic).
Among the interesting solutions is the connector between the kitchen and the boiler room, which can also serve as a pantry.
The extended eaves of the roof over the terrace and entrance is a practical and economical solution.
In addition, a room on the first floor will prove useful as a study, a room for guests or an elderly person.
A neat house, optimal in functions and area, for a family of 2+2, or 2+3. Note!
Framed building after development may present slightly different dimensions of the area, while maintaining the external dimensions. Light timber frame.
You can read more about wood and masonry technology here. THE DIAGRAM BELOW IS UNIVERSAL AND SIMPLIFIED, TO BE SURE OF THE SOLUTIONS IN INDIVIDUAL PROJECTS, YOU SHOULD ORDER THE ACTUAL DETAILED DRAWINGS OF THE PROJECT IN QUESTION
| Technology |
Masonry |
Wooden frame |
| Foundation | We assume simple soil conditions and use traditional footings, dug at 1m depth. | We assume simple soil conditions and use traditional footings, dug 1m deep. |
| External and load-bearing walls | Garages, outbuildings, stables without living quarters: width 25 cm x length 37.3 x height 24.9 cm Porotherm Dryfix 25 ceramic blocks. For summer houses and residential buildings, we use Porotherm Dryfix 30 cm x 24.8 cm x 24.9 cm hollow blocks. | Structural posts made of C24 or KVH wood with a maximum moisture content of 18% are adopted according to calculations. Most often 5x15cm, 6.3x15cm at a spacing of 40 or 60 cm. |
| Interior walls | Porotherm 11.5 Dryfix. Width 11.5 cm x height 24.9 cm x height 24.9 cm |
The posts in the partition walls usually measure 5×9 cm. |
| Ceiling | Porotherm thick ribbed: mostly floor joists 1.75 to 8.25m, every 25cm, and Porotherm 19/50cm ceiling blocks. The exception is the LIDO family of projects (the brick version has a wooden ceiling). |
Wooden ceiling, designed according to the calculations. With the diagram of the course of layers in the cross-section can be seen in the graphics below: |
| Roof truss | Cross-sections according to static-strength calculations | Cross sections according to static and strength calculations. Diagram below: |
| Insulations | Foundation: Waterproofing-moisture insulation, extruded xps board, 2xpap, styrofoam.Wall: styrofoam TermoOrganika.Roof: mineral wool ISOVER | Foundation: Waterproofing-moisture insulation, extruded xps board, 2xpap, Styrofoam.Wall: ISOVER wool between posts, TermoOrganika corrugated polystyrene or ISOVER wool.Roof: ISOVER mineral wool |
| Roofing | From 15 degrees Koramic clay tile, Koratech accessories:Below 15 degrees tile, seam sheet (panel) or felt on flat roofs. | From 15 degrees Koramic clay tile, Koratech accessories:Below 15 degrees sheet metal, seam sheet (panel) or felt on flat roofs. |
In the projects we recommend: Porotherm, Koramic, Terca products of the company
Wienerberger; gates, drives and doors by
Hörmann; roof windows
VELUX; thermal insulation systems
TermoOrganika; heating systems Viessmann. Each of the
6 copies (3 architectural-construction projects and 3 technical projects) of the set of architectural-construction documentation with trades ordered from us is sealed. To make sure that the project fits the development conditions of your plot or the guidelines of the local plan, order detailed drawings (under the projection) and present them to the local adaptive designer (you can use the help of our representatives).

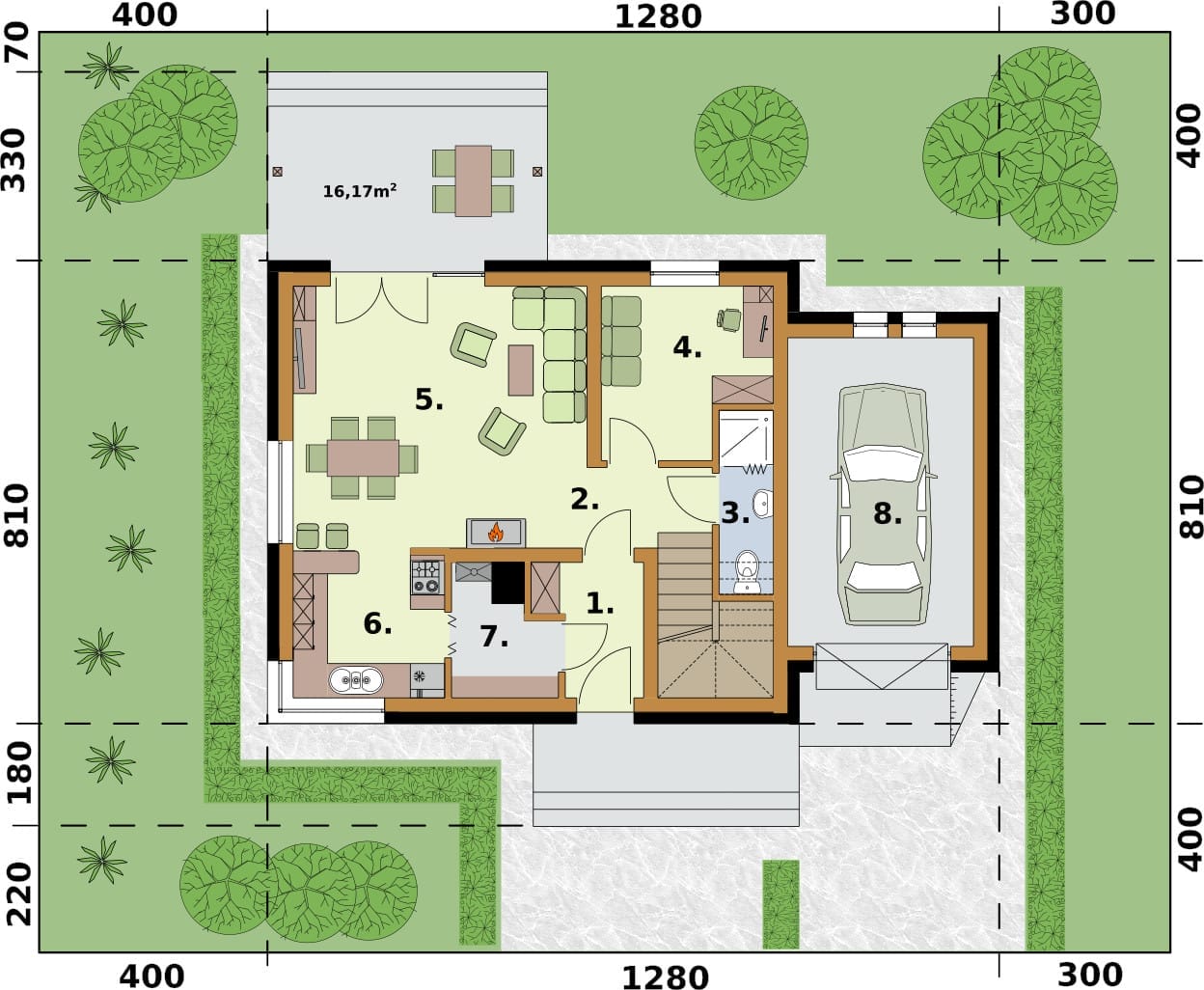

Ground plan
| No. | Name | Pow. usable [m²] |
Pow. net [m²] |
|---|---|---|---|
| 1 | Windbreak | 4.12 | 4.12 |
| 2 | Communications | 5.41 | 5.41 |
| 3 | Bathroom | 3.31 | 3.31 |
| 4 | Cabinet | 8.52 | 8.52 |
| 5 | Living room with dining room | 24.68 | 24.68 |
| 6 | Kitchen | 7.29 | 7.29 |
| 7 | Boiler room | 3.56 | 3.56 |
| 8 | Garage | 18.51 | 18.51 |
| Total | 75.4 | 75.4 |
Loft plan
| No. | Name | Pow. usable [m²] |
Pow. net [m²] |
|---|---|---|---|
| 1 | Communications | 8.76 | 8.76 |
| 2 | Room | 6.36 | 10.75 |
| 3 | Room | 10.38 | 17.43 |
| 4 | Room | 9.7 | 14.52 |
| 5 | Bathroom | 3.36 | 6.48 |
| Total | 38.56 | 57.94 |
Technical data
| Usable area
+ garage
+ terrace
|
95.42 m²
18.51 m² 13.08 m² |
| Built-in area | 97.28 m² |
| Net floor area | 114.80 m² |
| Total area | 201.10 m² |
| Cubic capacity | 535.20 m³ |
| Roof pitch angle | 40°, 25° |
| Dimensions of the building
length x width
|
8.10 x 12.80 m |
| Building height | 7.82 m |
| Min. plot dimensions length x width
|
16.10 x 19.80 m |
| Number of rooms | 5 |
| Roof | gabled |
| Storey | single-storey, with attic |
| Number of rooms | 13 |
| Pow. terraces |
13.08 m² |
| Design with garage | Yes |
| Number of positions in the garage | 1 |
| Design with boiler room | Yes |
| Design with entrance from the south | Yes |
