Project description and technology

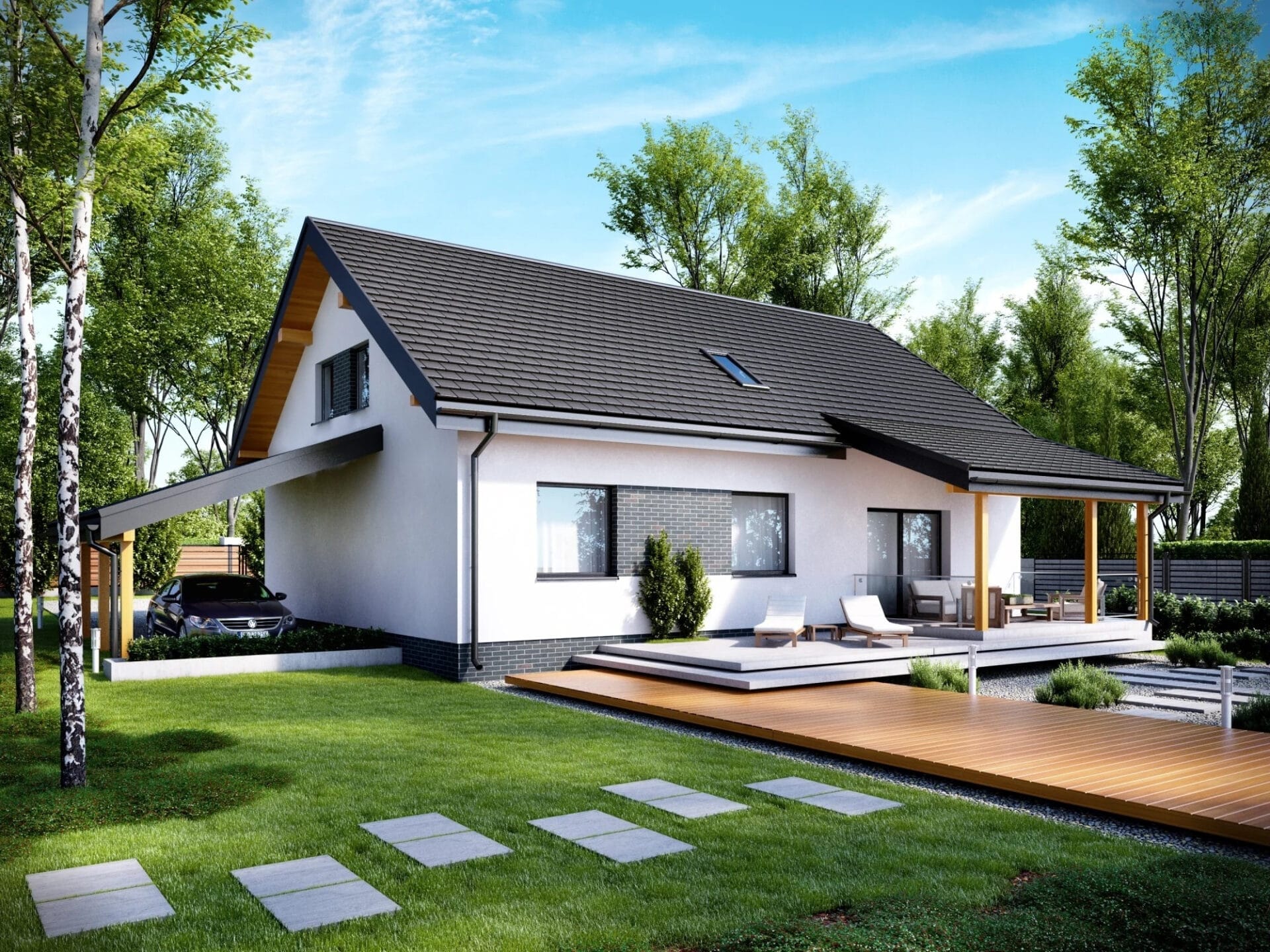

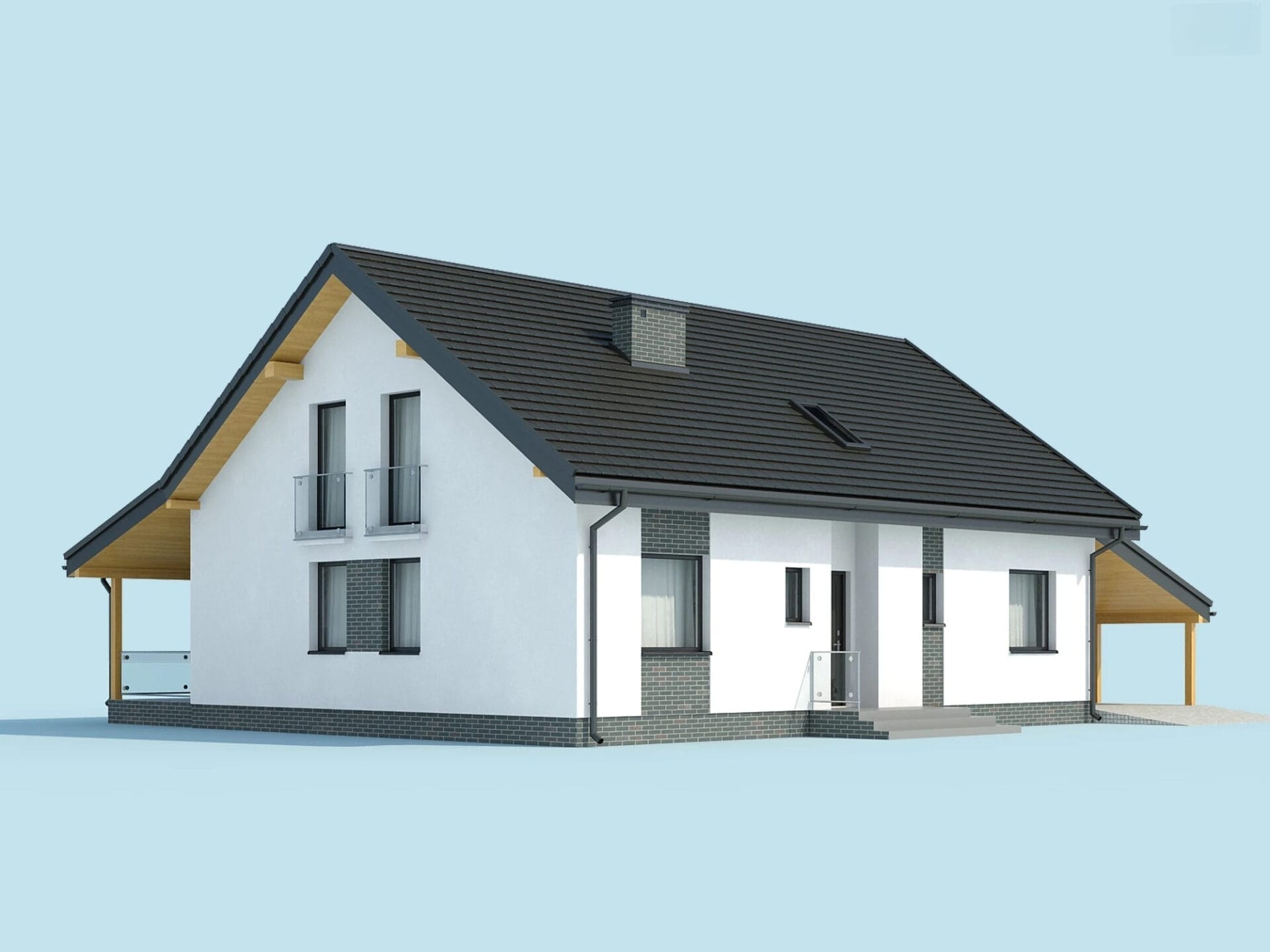

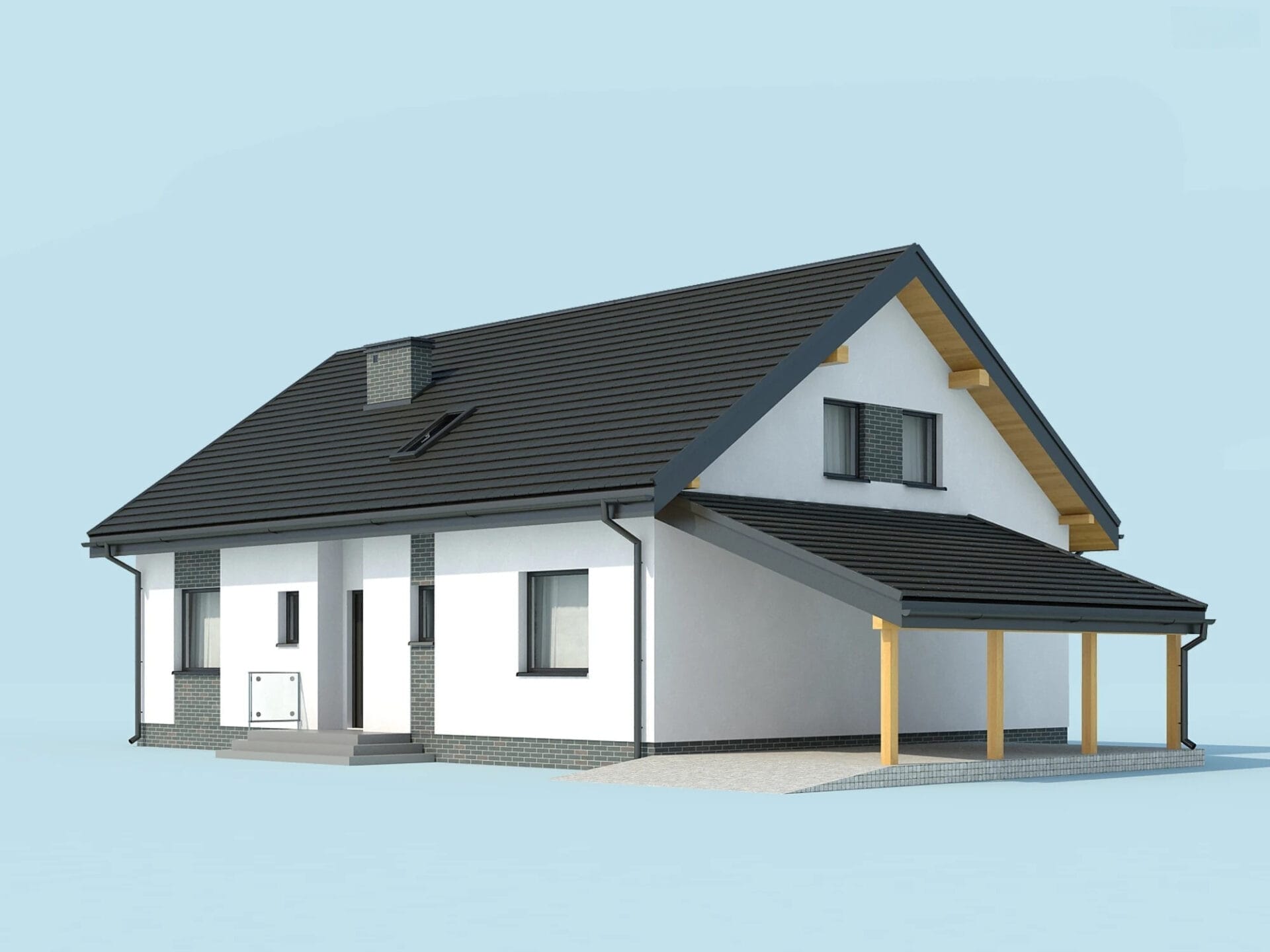

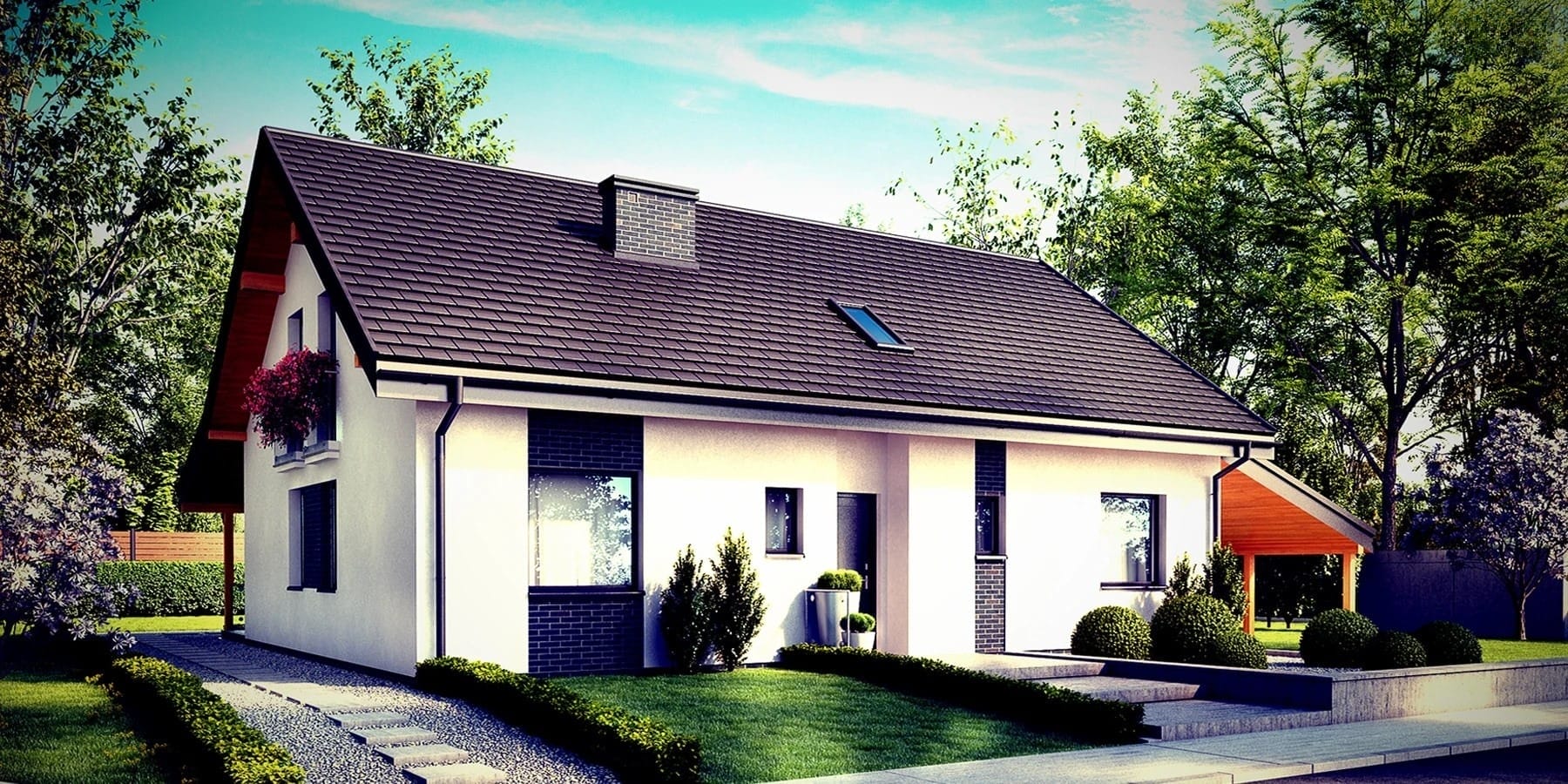

NICEA – detached house with attic for adaptation, in frame technology. Ask about the brick version.NICEA 2 – SEE VERSION WITH UTILITY UNDERFLOOR
The project consists of architectural, structural, internal sanitary installations and electrical installations.
The project includes a basic list of steel, wood and window and door joinery.
The project is accompanied by a free approval for changes, a statement of the designers on the execution of the project in accordance with the applicable standards and regulations, as well as photocopies of the designers’ authorizations with current registration in the chamber. If you order a project with lightweight timber frame technology, the usable area of the building is about 7% larger.
every 40cm clad externally with OSB 3 , and internally with 1.25cm gypsum-fiber board, the space between the posts filled with 15cm mineral wool.
– Internal load-bearing walls: 5×15 posts spaced max.
every 40cm clad externally and internally with 1.25cm gypsum-fiber board , the space between the posts filled with 15cm mineral wool.
– Internal partition walls: 5×9 posts spaced max.
every 40cm upholstered outside and inside with GK board , space between posts filled with 9cm mineral wool.
– Insulated with 14cm polystyrene foam.
-Knee wall height 0.65mTraditional technology : ask for availability
– External masonry walls 30cm thick – polystyrene insulation
In the projects we recommend: Porotherm, Koramic, Terca products of the company
Wienerberger; gates, drives and doors by
Hörmann; roof windows
VELUX; thermal insulation systems
TermoOrganika; heating systems Viessmann. For details on the various partitions, see the entry
Technologies Each of the
6 copies (3 architectural-construction projects and 3 technical projects) of the set of architectural-construction documentation with trades ordered from us
is sealed. You can find more information about seals here – Why do we seal the documentation? To make sure that the project fits the development conditions of your plot or the guidelines of the local plan, order detailed drawings (under the projection) and present them to the local adaptive designer (you can use the help of our representatives).
Ground plan
| No. | Name | Pow. usable [m²] |
Pow. net [m²] |
|---|---|---|---|
| 01. | Windbreak | 3.02 | 3.02 |
| 09. | Kitchen | 8.03 | 8.03 |
| 02. | Communications | 10.63 | 10.63 |
| 03. | Bathroom | 5.65 | 5.65 |
| 04. | Room | 11.61 | 11.61 |
| 05. | Closet | 3.58 | 3.58 |
| 07. | Room | 15.85 | 15.85 |
| 08. | Salon | 33.66 | 33.66 |
| 06. | Room | 13.84 | 13.84 |
| Total | 105.87 | 105.87 | |
| 10. | Boiler room | 4.14 | 4.14 |
| 11. | Shelter | 26.40 | 26.40 |
| 12. | Terrace | 14.26 | 14.26 |
| Total | 44.8 | 44.8 |

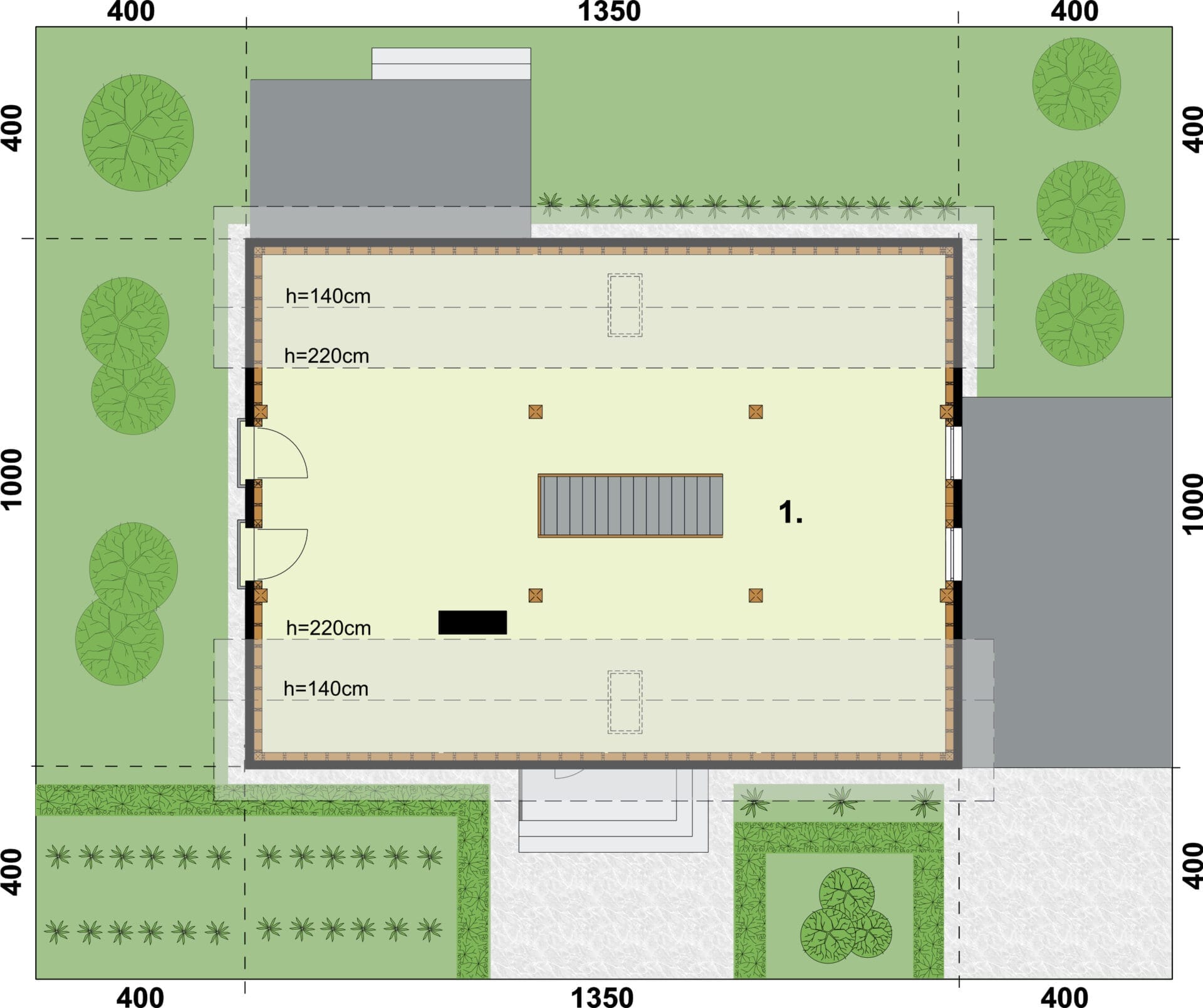

Attic to be adapted
| No. | Name | Pow. usable [m²] |
Pow. net [m²] |
|---|---|---|---|
| 1 | Attic | 72.73 | 120.81 |
| Total | 72.73 | 120.81 |
Technical data
| Usable area
+ boiler room
+ carport
+ attic for adaptation
|
105.87 m²
4.14 m² 26.6 m² 72.73 m² |
| Development area
+ carport
+ veranda
|
135.00 m²
28 m² 17.64 m² |
| Net floor area | 0.00 m² |
| Total area | 321.36 m² |
| Cubic capacity | 961.55 m³ |
| Roof pitch angle | 35°, 20° |
| Dimensions of the building
length x width
|
13.50 x 10.00 m |
| Building height | 7.80 m |
| Min. plot dimensions length x width
|
18.00 x 21.50 m |
| Roof | gabled |
| Storey | with attic |
| Number of rooms | 10 |
| Pow. terraces/verandas/floors/exterior stairs. |
50.14 m² |
| Design without garage | Yes |
| Design with carport | Yes |
| Design with boiler room | Yes |
