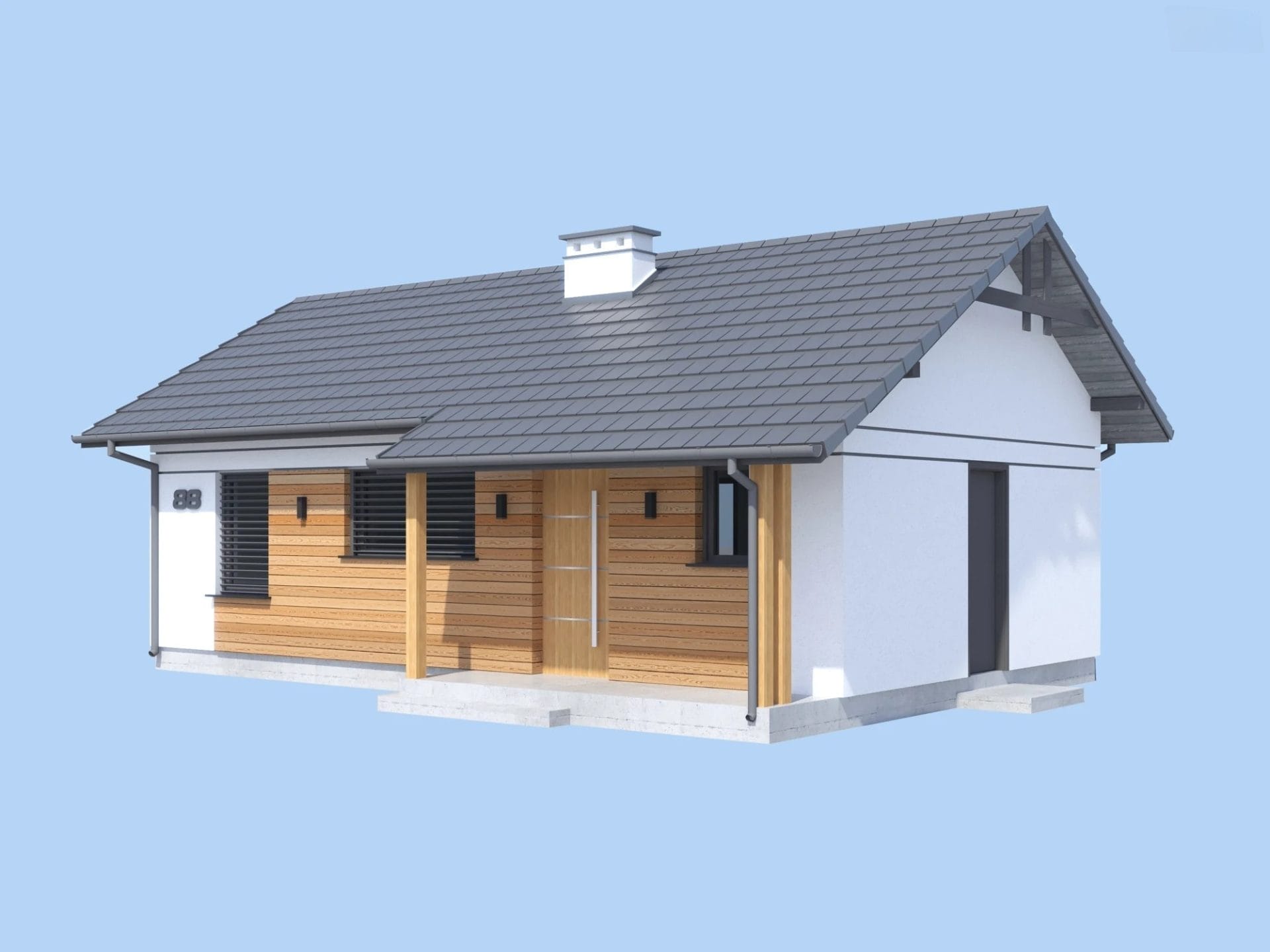

MIAMI timber frame modern holiday home design, single-storey the latest incarnation of the bestselling LA PALMA after facelift.
This 3-bedroom project is ideal for investors looking for a comfortable recreational or residential house.

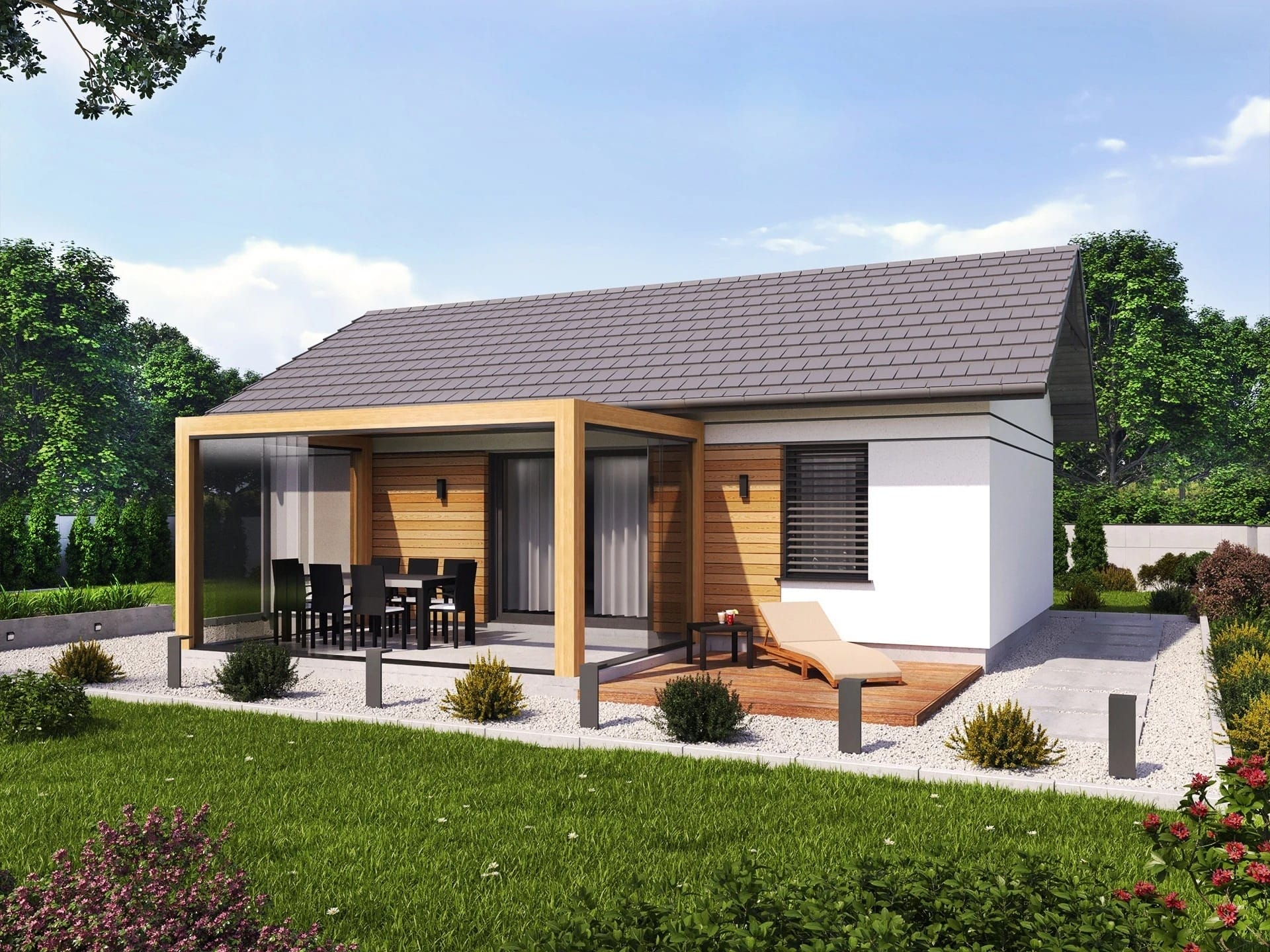

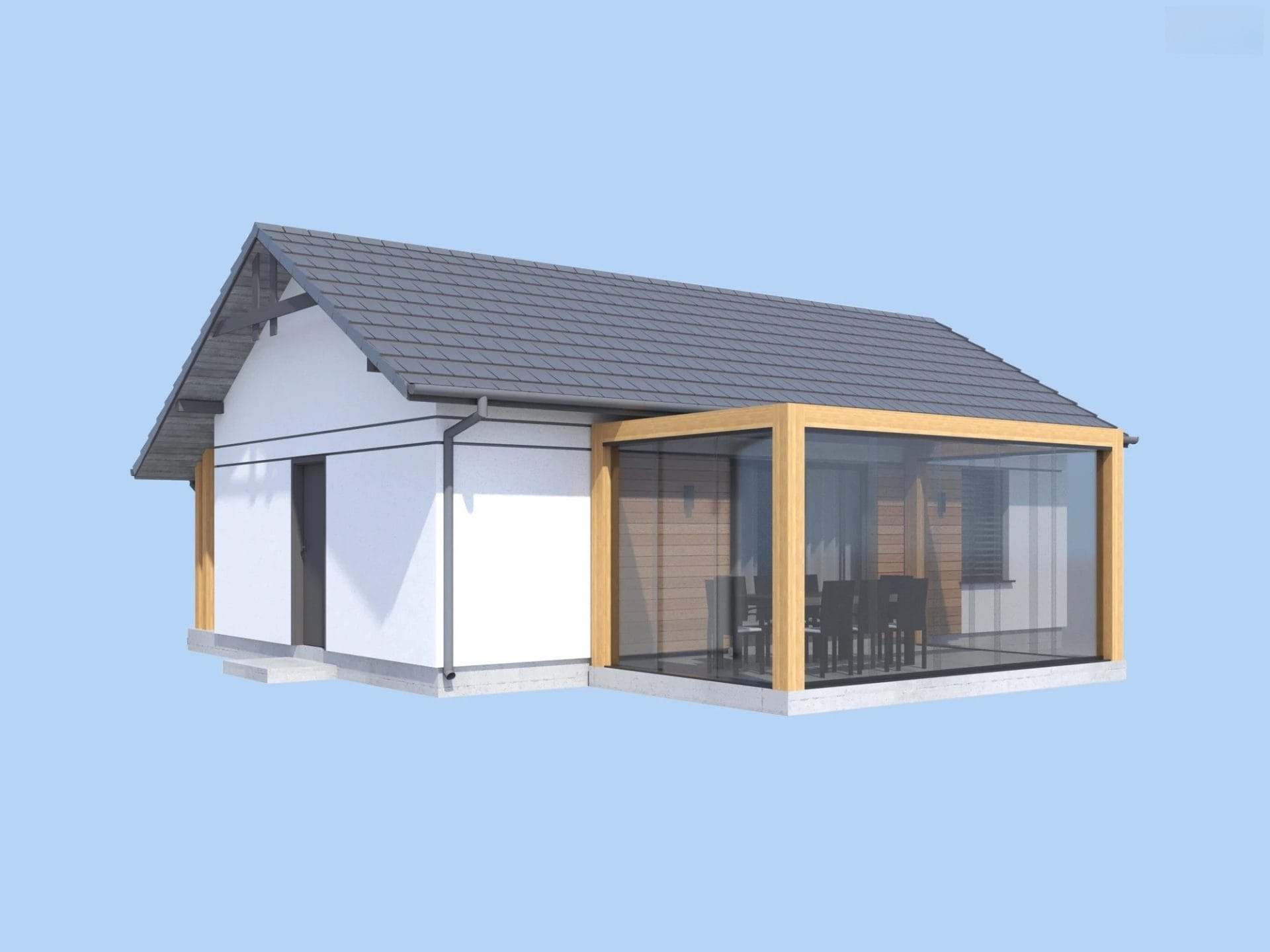

A bathroom, a kitchen with a living room, a utility room and a pergola/leisure world with the possibility of glazing connected to the living room complete the design.
The holiday version does not have system heating or insulation for the residential house.
It does, however, have a fireplace.
In the residential, year-round variant, it has walls insulated with 20 cm of Styrofoam and the roof with 25 cm of mineral wool (insulated suspended ceiling), as well as a heating system of choice: heat pump, biomass fireplace with water jacket.
Light timber frame technology – details of partitions. THE DIAGRAM BELOW IS UNIVERSAL AND SIMPLIFIED, IN ORDER TO BE SURE OF THE SOLUTIONS IN INDIVIDUAL PROJECTS, YOU SHOULD ORDER THE CURRENT DETAILED DRAWINGS OF THE PROJECT IN QUESTION
| Technology |
Masonry |
Wooden frame |
| Foundation | We assume simple soil conditions and use traditional footings, dug at 1m depth. | We assume simple soil conditions and use traditional footings, dug 1m deep. |
| External and load-bearing walls | Garages, outbuildings, stables without living quarters: width 25 cm x length 37.3 x height 24.9 cm Porotherm Dryfix 25 ceramic blocks. For summer houses and residential buildings, we use Porotherm Dryfix 30 cm x 24.8 cm x 24.9 cm hollow blocks. | Structural posts made of C24 or KVH wood with a maximum moisture content of 18% are adopted according to calculations. Most often 5x15cm, 6.3x15cm at a spacing of 40 or 60 cm. |
| Interior walls | Porotherm 11.5 Dryfix. Width 11.5 cm x height 24.9 cm x height 24.9 cm |
The posts in the partition walls usually measure 5×9 cm. |
| Ceiling | Porotherm thick ribbed: mostly floor joists 1.75 to 8.25m, every 25cm, and Porotherm 19/50cm ceiling blocks. The exception is the LIDO family of projects (the brick version has a wooden ceiling). |
Wooden ceiling, designed according to the calculations. With the diagram of the course of layers in the cross-section can be seen in the graphics below: |
| Roof truss | Cross-sections according to static-strength calculations | Cross sections according to static and strength calculations. Diagram below: |
| Insulations | Foundation: Waterproofing-moisture insulation, extruded xps board, 2xpap, styrofoam.Wall: styrofoam TermoOrganika.Roof: mineral wool ISOVER | Foundation: Waterproofing-moisture insulation, extruded xps board, 2xpap, Styrofoam.Wall: ISOVER wool between posts, TermoOrganika corrugated polystyrene or ISOVER wool.Roof: ISOVER mineral wool |
| Roofing | From 15 degrees Koramic clay tile, Koratech accessories:Below 15 degrees tile, seam sheet (panel) or felt on flat roofs. | From 15 degrees Koramic clay tile, Koratech accessories:Below 15 degrees sheet metal, seam sheet (panel) or felt on flat roofs. |
In the projects we recommend: Porotherm, Koramic, Terca products of the company
Wienerberger; gates, drives and doors by
Hörmann; roof windows
VELUX; thermal insulation systems
TermoOrganika; heating systems
Viessmann. Each of the
6 copies (3 architectural-construction projects and 3 technical projects) of the set of architectural-construction documentation with trades ordered from us is sealed. To make sure that the project fits the development conditions of your plot or the guidelines of the local plan, order detailed drawings (under the projection) and present them to the local adaptive designer (you can use the help of our representatives).
Ground plan
| No. | Name | Pow. usable [m²] |
Pow. net [m²] |
|---|---|---|---|
| 1 | Windbreak | 2.92 | 2.92 |
| 2 | Communications | 7.04 | 7.04 |
| 3 | Kitchen | 4.53 | 4.53 |
| 4 | Bedroom | 7.88 | 7.88 |
| 5 | Bedroom | 7.88 | 7.88 |
| 6 | Living room | 10.48 | 10.48 |
| 7 | Utility room | 6.53 | 6.53 |
| 8 | Bathroom | 4.10 | 4.1 |
| Total | 51.36 | 51.36 | |
| 9 | Terrace | 13.5 | 13.5 |
| Total | 13.5 | 13.5 |
Technical data
| Usable area
+ terrace
|
51.36 m² 13.5 m² |
| Built-up area | 61.63 m² |
| Net floor area | 51.36 m² |
| Total area | 87.83 m² |
| Cubic capacity | 289.00 m³ |
| Roof pitch angle | 30° |
| Dimensions of the building
length x width
|
6.10 x 10.10 m |
| Building height | 5.26 m |
| Min. plot dimensions length x width
|
14.60 x 18.10 m |
| Building area | 70m² |
| Number of rooms | 3 |
| Roof | gabled |
| Storey | first floor |
| Number of rooms | 8 |
| Pow. terraces/verandas/floors/exterior stairs. |
13.5 m² |
| Design without garage | Yes |
| Design with entrance from the south | Yes |
