Project description and technology

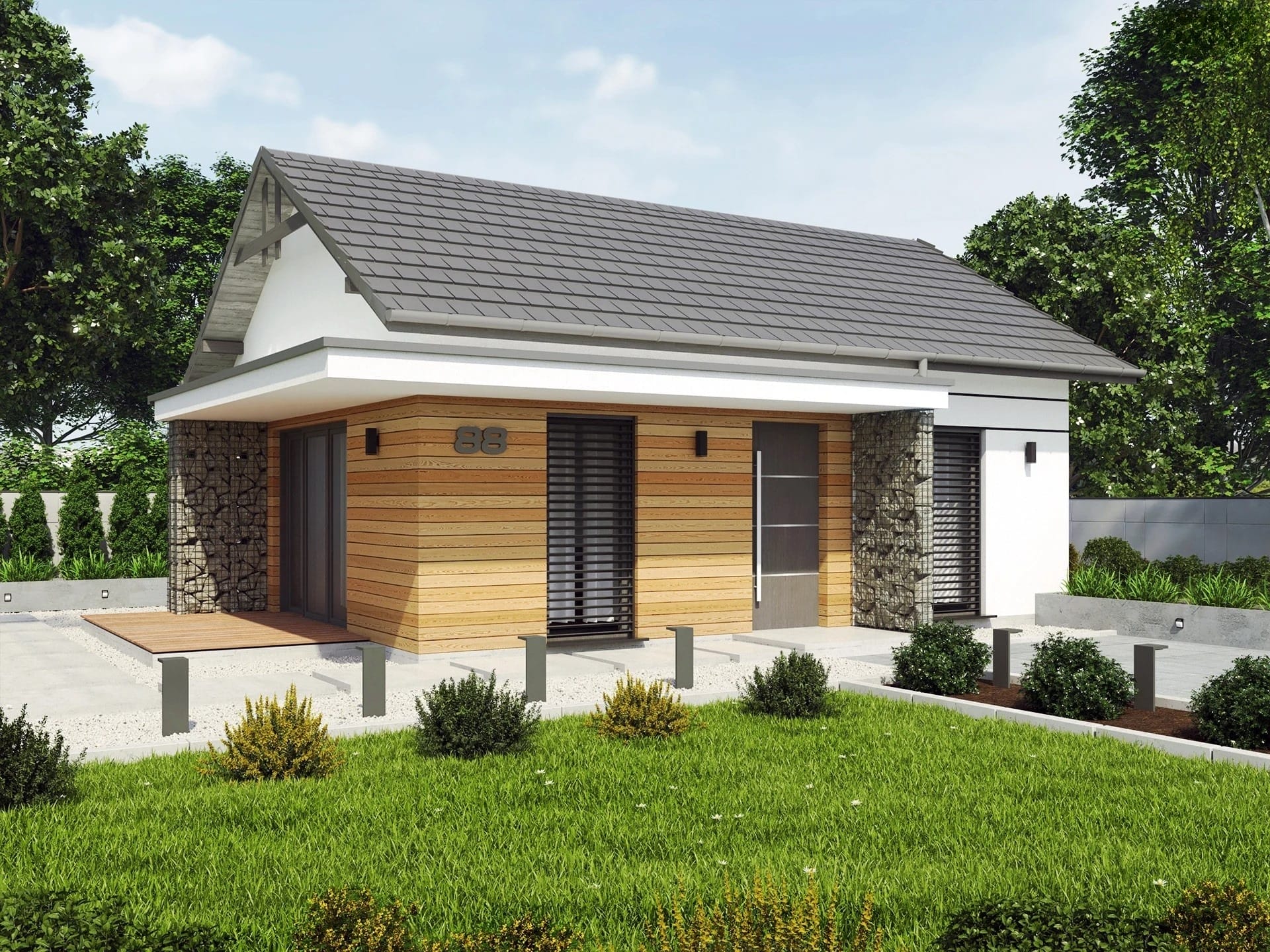

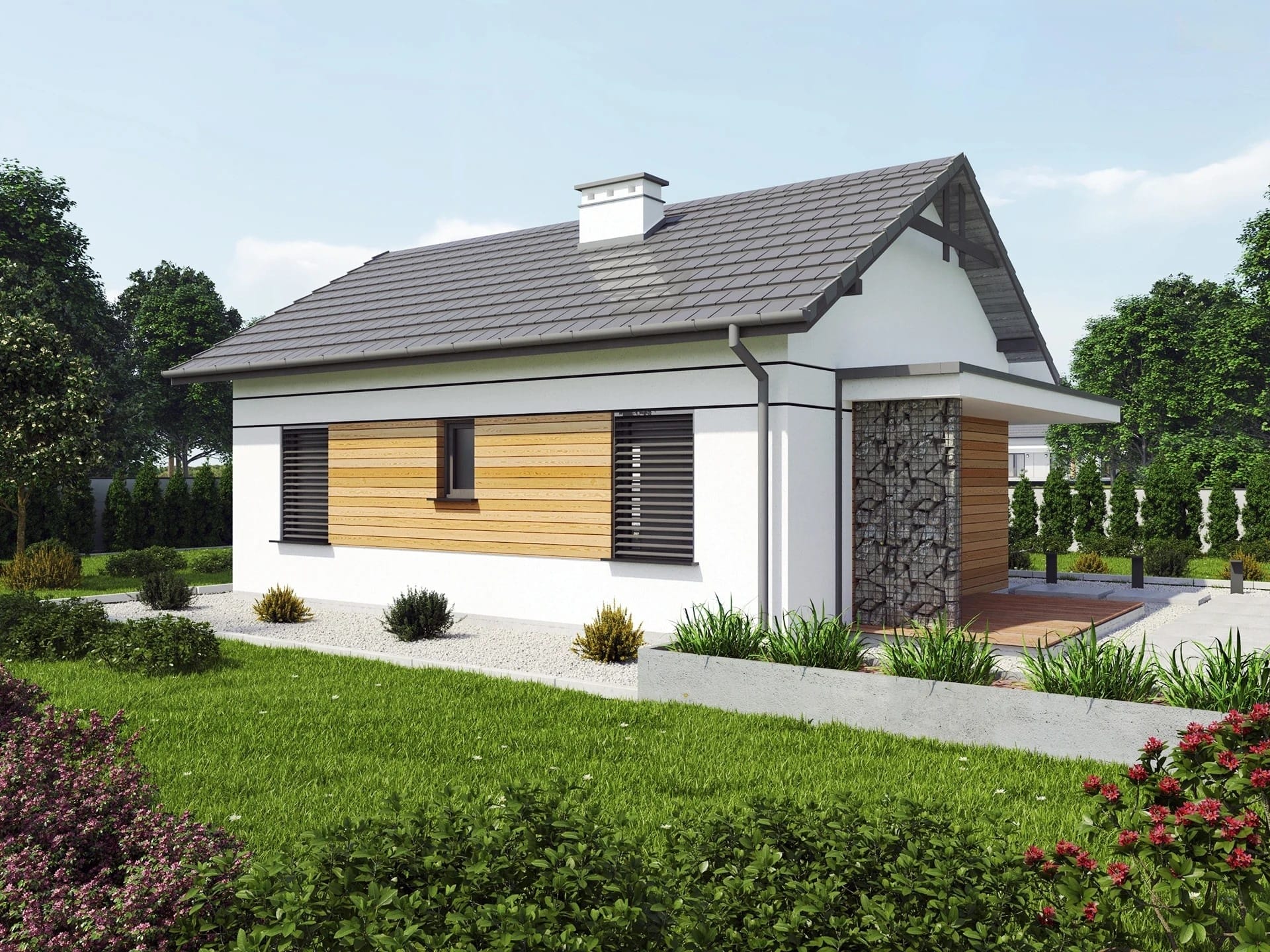

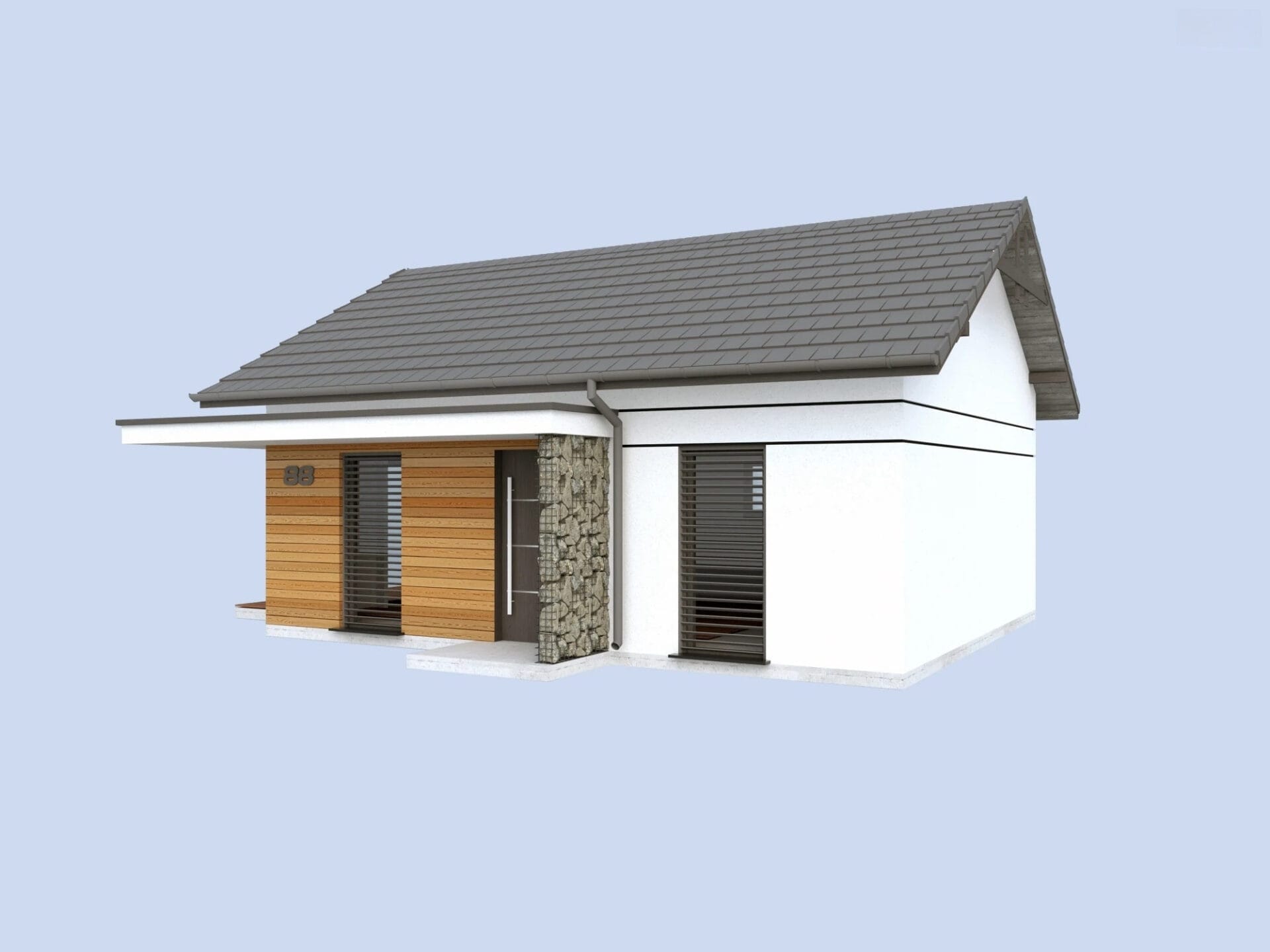

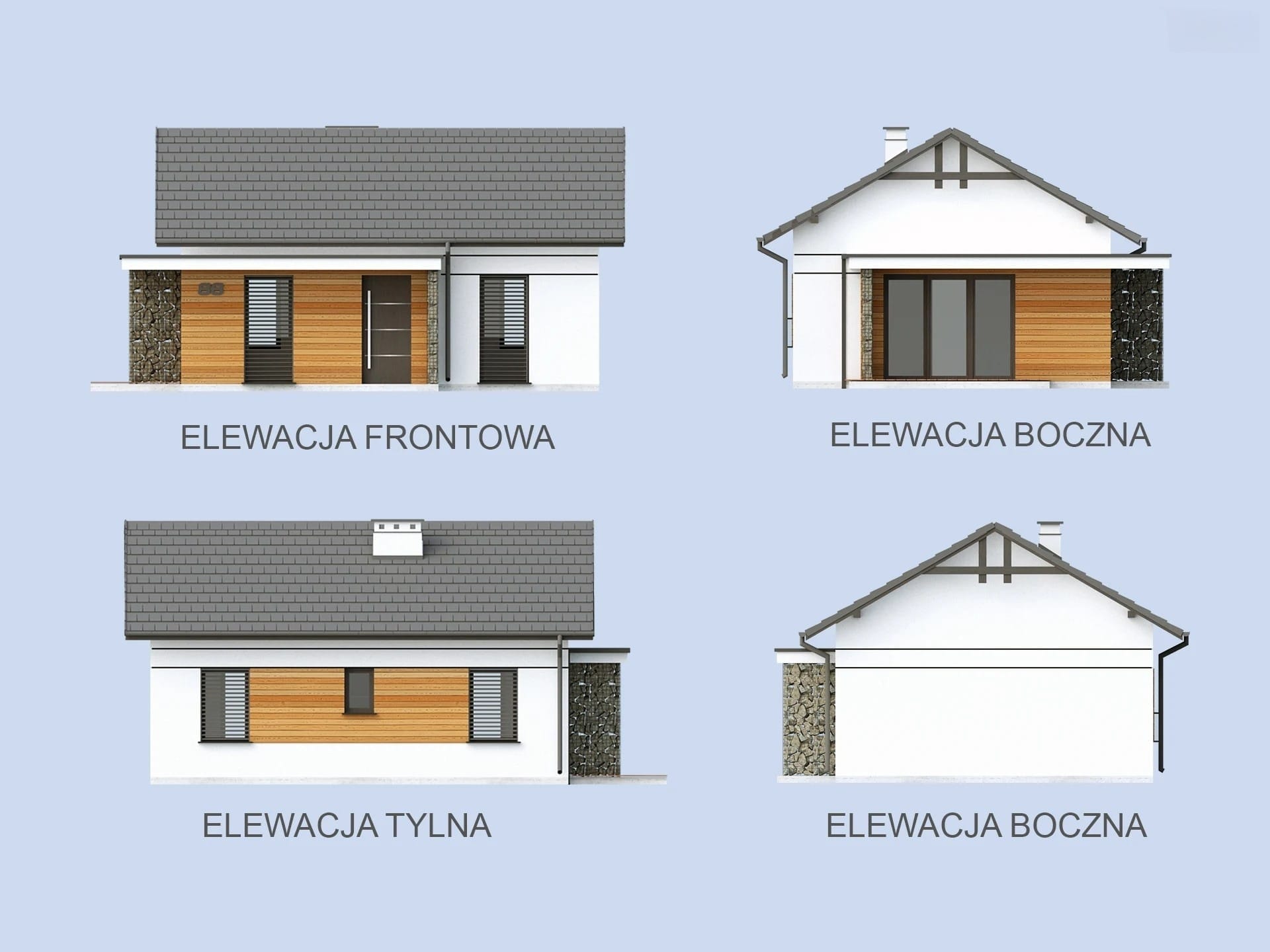

LEON project of a single-storey detached summer house This bungalow is a variant of the LENS project only that with a gable roof.
A combination of modernity and classics.
Three rooms, including a living room with a kitchen, a bathroom and a terrace on the west side. THE DIAGRAM BELOW IS UNIVERSAL AND SIMPLIFIED, TO BE SURE OF THE SOLUTIONS IN INDIVIDUAL PROJECTS, YOU SHOULD ORDER THE ACTUAL DETAILED DRAWINGS OF THE PROJECT IN QUESTION
| Technology |
Masonry |
Wooden frame |
| Foundation | We assume simple soil conditions and use traditional footings, dug at 1m depth. | We assume simple soil conditions and use traditional footings, dug 1m deep. |
| External and load-bearing walls | Garages, outbuildings, stables without living quarters: width 25 cm x length 37.3 x height 24.9 cm Porotherm Dryfix 25 ceramic blocks. In summer houses and residential buildings we use Porotherm Dryfix 30 cm x 24.8 cm x 24.9 cm hollow blocks. | Structural posts made of C24 or KVH wood with a maximum moisture content of 18% are adopted according to calculations. Most often 5x15cm, 6.3x15cm at a spacing of 40 or 60 cm. |
| Interior walls | Porotherm 11.5 Dryfix. Width 11.5 cm x height 24.9 cm x height 24.9 cm |
The posts in the partition walls usually measure 5×9 cm. |
| Ceiling | Porotherm thick ribbed: mostly floor joists 1.75 to 8.25m, every 25cm, and Porotherm 19/50cm ceiling blocks. The exception is the LIDO family of projects (the brick version has a wooden ceiling). |
Wooden ceiling, designed according to the calculations. With the diagram of the course of layers in the cross-section can be seen in the graphics below: |
| Roof truss | Cross-sections according to static-strength calculations | Cross sections according to static and strength calculations. Diagram below: |
| Insulations | Foundation: Waterproofing-moisture insulation, extruded xps board, 2xpap, styrofoam.Wall: styrofoam TermoOrganika.Roof: mineral wool ISOVER | Foundation: Waterproofing-moisture insulation, extruded xps board, 2xpap, Styrofoam.Wall: ISOVER wool between posts, TermoOrganika corrugated polystyrene or ISOVER wool.Roof: ISOVER mineral wool |
| Roofing | From 15 degrees Koramic clay tile, Koratech accessories:Below 15 degrees tile, seam sheet (panel) or felt on flat roofs. | From 15 degrees Koramic clay tile, Koratech accessories:Below 15 degrees sheet metal, seam sheet (panel) or felt on flat roofs. |
In the projects we recommend: Porotherm, Koramic, Terca products of the company
Wienerberger; gates, drives and doors by
Hörmann; roof windows
VELUX; thermal insulation systems
TermoOrganika; heating systems Viessmann. For details on the various partitions, see the entry
Technologies Each of the
6 copies (3 architectural-construction projects and 3 technical projects) of the set of architectural-construction documentation with trades ordered from us
is sealed. You can find more information about seals here – Why do we seal the documentation? To make sure that the project fits the development conditions of your plot or the guidelines of the local plan, order detailed drawings (under the projection) and present them to the local adaptive designer (you can use the help of our representatives).
Ground plan
| No. | Name | Pow. usable [m²] |
Pow. net [m²] |
|---|---|---|---|
| 1 | Windbreak | 2.54 | 2.54 |
| 2 | Communications | 4.01 | 4.01 |
| 3 | Bedroom | 8.78 | 8.78 |
| 4 | Bedroom | 8.78 | 8.78 |
| 5 | Bathroom | 2.54 | 2.54 |
| 6 | Living room | 11.58 | 11.58 |
| 7 | Kitchen | 4.74 | 4.74 |
| Total | 42.97 | 42.97 |
Technical data
| Usable area
+ terrace
|
42.97 m²
9.12 m² |
| Built-in area | 56.43 m² |
| Net floor area | 42.97 m² |
| Total area | 69.91 m² |
| Cubic capacity | 315.05 m³ |
| Roof pitch angle | 35° |
| Dimensions of the building
length x width
|
8.55 x 6.60 m |
| Building height | 6.15 m |
| Min. plot dimensions length x width
|
15.55 x 14.60 m |
| Building area | 70m² |
| Number of rooms | 3 |
| Roof | gabled |
| Storey | first floor |
| Number of rooms | 7 |
| Pow. terraces |
9.12 m² |
| Pow. terraces/verandas/floors/exterior stairs. |
9.12 m² |
| Design without garage | Yes |
| Design with entrance from the south | Yes |
