Lamia – a project of a single-family house in frame technology.
Timber frame technology:
every 40cm upholstered outside with OSB 3 1.5cm , and inside with Farmacell 1.25cm , the space between the posts filled with mineral wool 15cm , polystyrene 10cm
every 40cm upholstered on both sides with 1.25cm Farmacell board space between posts filled with 15cm mineral wool
every 40cm upholstered on both sides with 1.25cm Farmacell board space between posts filled with 9cm mineral wool
In the projects we recommend: Porotherm, Koramic, Terca products of the company
Wienerberger; gates, drives and doors by
Hörmann; roof windows
VELUX; thermal insulation systems
TermoOrganika; heating systems Viessmann. For details on the various partitions, see the entry
Technologies Each of the
6 copies (3 architectural-construction projects and 3 technical projects) of the set of architectural-construction documentation with trades ordered from us are sealed. To make sure that the project fits the development conditions of your plot or the guidelines of the local plan, order detailed drawings (under the projection) and present them to the local adaptive designer (you can use the help of our representatives).

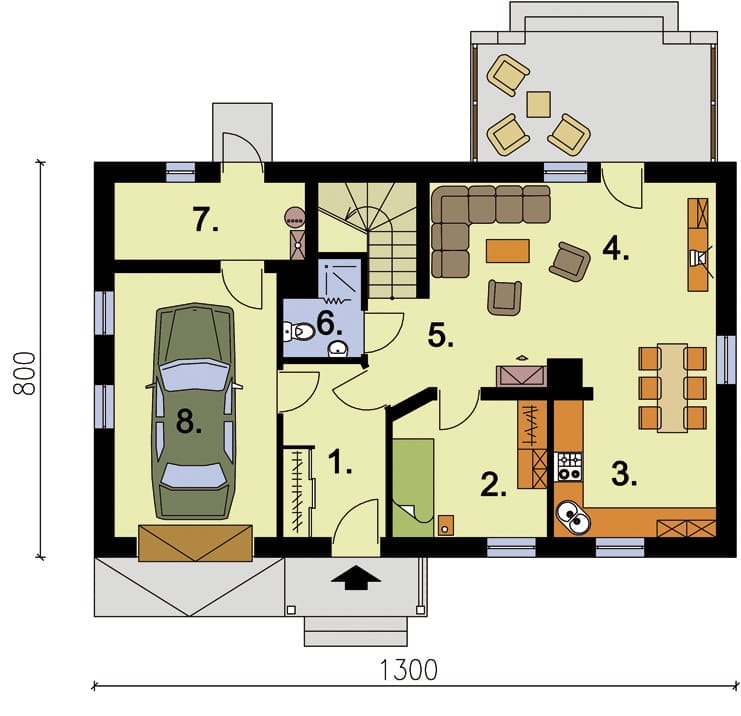

Ground plan
| No. | Name | Pow. usable [m²] |
Pow. net [m²] |
|---|---|---|---|
| 1. | Windbreak | 7.52 | 0 |
| 2. | Room | 8.86 | 0 |
| 3. | Kitchen with dining area | 12.46 | 0 |
| 4. | Living room | 23.12 | 0 |
| 5. | Communication | 5.77 | 0 |
| 6. | Bathroom | 2.66 | 0 |
| Total | 60.39 | 0 | |
| 7. | Boiler room | 7.27 | 0 |
| 8. | Garage | 19.73 | 0 |
| Total | 27 | 0 |

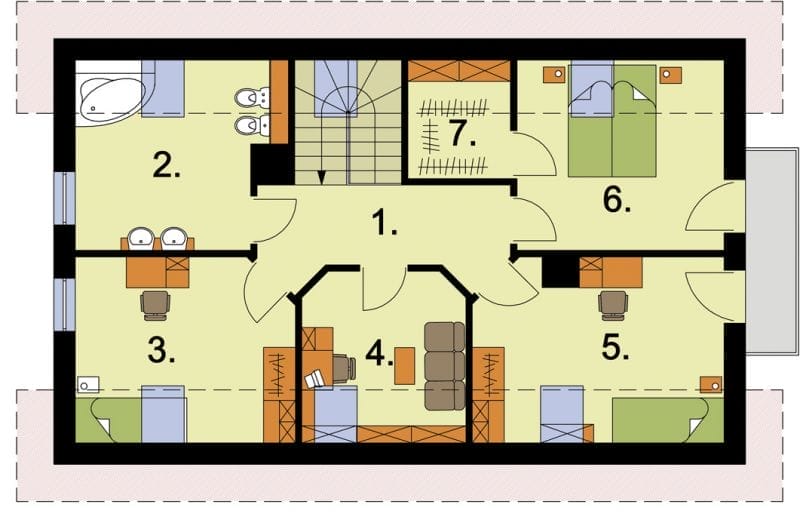

Loft plan
| No. | Name | Pow. usable [m²] |
Pow. net [m²] |
|---|---|---|---|
| 1. | Communication | 10.39 | 0 |
| 3. | Room | 11.13 | 0 |
| 4. | Room | 7.31 | 0 |
| 5. | Room | 12.29 | 0 |
| 6. | Bedroom | 11.12 | 0 |
| 7. | Closet | 2.69 | 0 |
| 2. | Bathroom | 10.07 | 0 |
| Total | 65 | 0 |
Technical data
| Usable area | 143.60 m² |
| Built-up area | 104.00 m² |
| Net floor area | 0.00 m² |
| Total area | 166.26 m² |
| Cubic capacity | 659.20 m³ |
| Roof pitch angle | 43° |
| Dimensions of the building
length x width
|
13.00 x 8.00 m |
| Building height | 8.08 m |
| Min. plot dimensions length x width
|
18.45 x 21.00 m |
| Roof | gabled |
| Storey | with attic |
| Number of rooms | 6 |
| Pow. terraces/verandas/floors/exterior stairs. |
20.8 m² |
| Design with garage | Yes |
| Number of positions in the garage | 1 |
| Design with boiler room | Yes |
| Design with entrance from the south | Yes |
