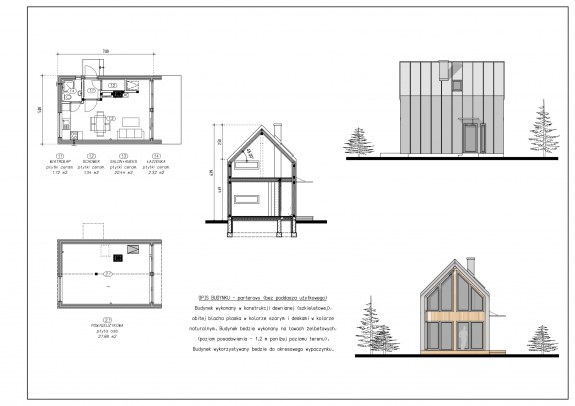

L-302 house in tech.szk.with or without an attic

It is possible to prepare this project in the version “for notification” In this case, the attic will be described as a non-functional attic.
The project can also be described as a one-story individual recreation building with a mezzanine.
In building L-302, domestic hot water is produced in electric water heaters – according to the sanitary system design.
The total power consumed by these heaters is: 2 x 5.5kW = 11kW.
The electric stove draws 8kW of power.
Central heating is made of electric heaters, which together draw 5kW of power.
In total, the central heating, hot water and electric stove total 24kW of installed power.
Adding the other installations to this comes out 29kW of installed power and after conversion the maximum power is 20kW.
If the heating of water and co was from a gas stove and not from electric appliances, then the power for the building would be 14kW.

Interior walls of first floor – 12 cm thick frame walls filled with mineral wool

Internal walls of the attic – Walls of 12 cm thick frame structure filled with mineral wool.

Roof

Wooden rafter and purlin structure with a purlin in the ridge 16×16 cm thick, made of pine or spruce wood of C24 class.
The roof is entirely covered with battens and counterbattens.
Rafters with a cross section of 10x18cm, counter-battens 2,5 x 5 cm.
All wooden elements should be protected against biological corrosion by min.
2 times lubrication with a salt preparation e.g.
“Intox S” according to the manufacturer’s guidelines and orders, or other agents approved for use in residential construction protecting wooden elements against fungi, insects and fire.

Are you building a house in Bielsko-Biała or the surrounding area?
We invite you to our office in Bielsko-Biała.
We deal with adaptation of ready-made projects and development of individual projects.

Guttering in homes without eaves

See all projects in modern barn style !

Part of each project is the energy performance, which is an overview document.
The author of the project adaptation should correct the design, taking into account local conditions.
Please note that properly prepared characteristics should take into account the specific site, and the materials used for construction and insulation.
The characteristics are submitted to the authority along with the technical part after the construction of the building.
