MODULEO POLAND
PREMIUM MODULAR HOMES
MODULEO
POLAND
is a rapidly growing brand.
We specialize in the construction of year-round modular and frame houses that meet the requirements of WT2021.
The most important thing for us is the quality of project execution , timeliness and contact with the client.
We strive to make each project proceed in a creative and flexible atmosphere, in which the most important point is customer satisfaction
We have 26 years of experience, which we gained in Scandinavia and more precisely in Norway.
Our team are qualified professionals who work together with us to build modular houses, frame houses, garages, gazebos and terrace structures.
We have satisfied customers ourselves with the houses comprehensively made by our company using this technology.

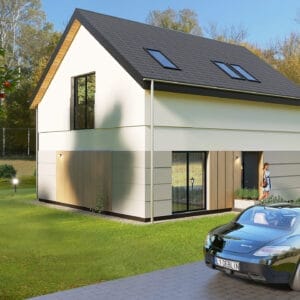

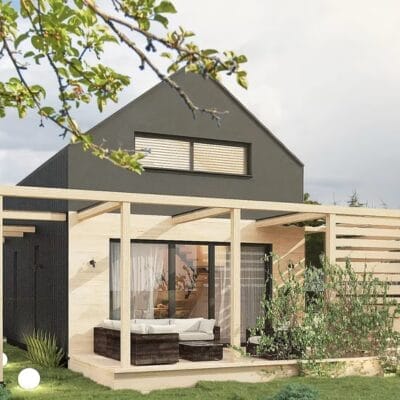

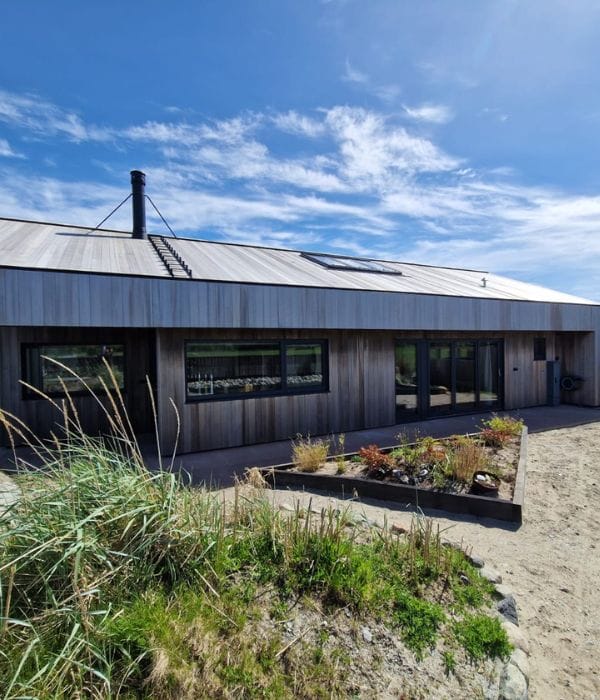

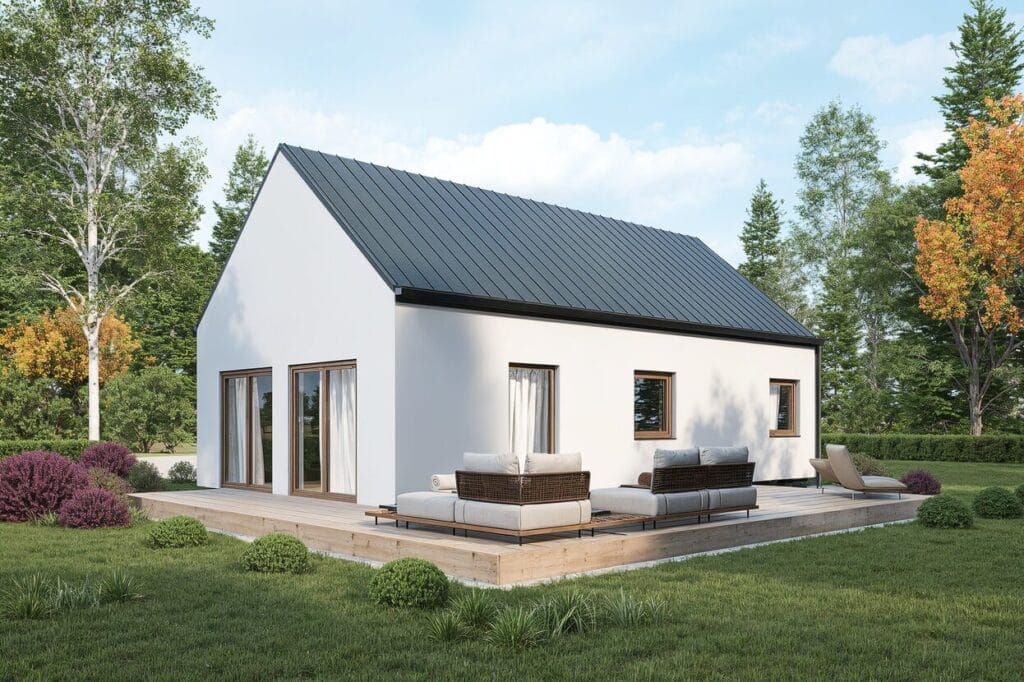

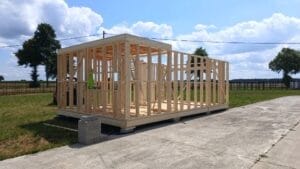

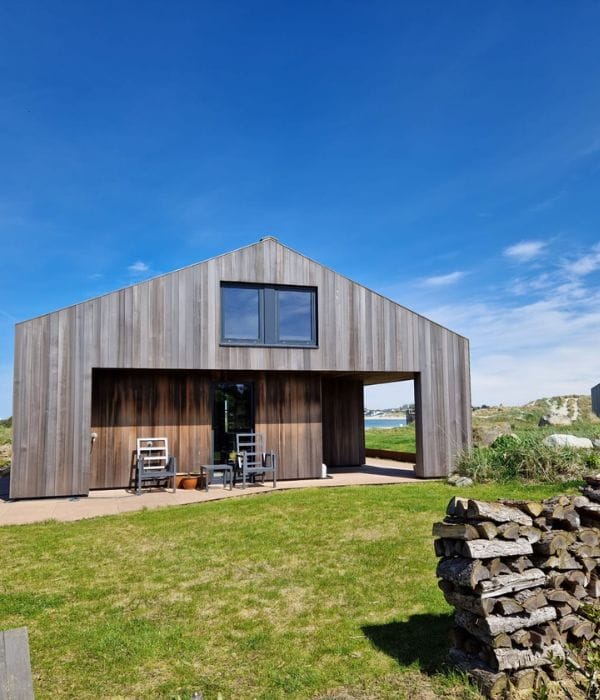

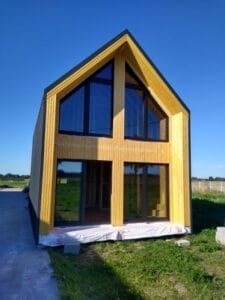

Realizations
Advantages of
prefabrication
MODULEO
POLAND
Premium Modular Homes are year-round homes that meet all WT2021 requirements
TECHNOLOGY
For the construction of our houses we use materials of the highest quality, we use certified wood imported only from Scandinavia.
We use selected C24 grade solid spruce wood, known for its strength and durability.
We also use glulam KVH structural timber is a modern wood material dried to a moisture content of 15% +/- 3%, four-sided planed and glued longitudinally into micro grafts up to a length of 13 meters.
KVH wood elements are ideal for the construction of walls, ceilings, beams for drywall construction or joists for floorboards, among other things.
KVH is a name reserved for products manufactured by German and Austrian corporations, so when you buy KVH wood you get a guarantee of quality.
We cover the roof with tile or seam sheets.
Window and door joinery
We use PVC 3 pane windows , which provide adequate thermal insulation parameters.
On request, we can use any type of windows available on the market!
Electrical and plumbing installation
We do most of the installation at our manufacturing facility.
This reduces the scope of work and saves time.
In addition, for you, we offer everything you need to comprehensively equip your home or retrofit it:
– Air conditioning, recuperation, heat pumps;
– Full electrical service, electronics, alarms, cameras, monitoring;
– Full plumbing service;
– Photovoltaics;
– Fencing;
– Garden arrangements;
– Full interior visualization;
– Surveyor services;
– Construction manager
Technology
Exterior wall
1. G-K board or board
2. Vapor barrier
3. OSB
140 mm or PUR foam in the space between the KVH/C24 structural framing
5. cladding board
6. vapor-permeable film
7. hydrophobized mineral wool 50 mm or 100 mm
(additional insulation in year-round version)
8. façade cladding according to detailed façade design mounted to wooden grid or in case of plaster directly on mineral wool

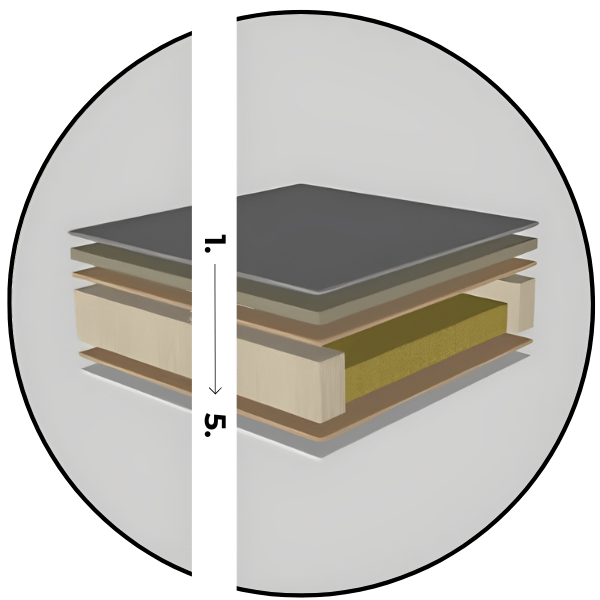

Ceiling
1. vinyl flooring / porcelain tiles
2. dry screed boards
3. OSB 22 mm
4. ceiling joists timber KVH/C24 according to the construction project mineral wool or PUR foam filling
5. G-K board

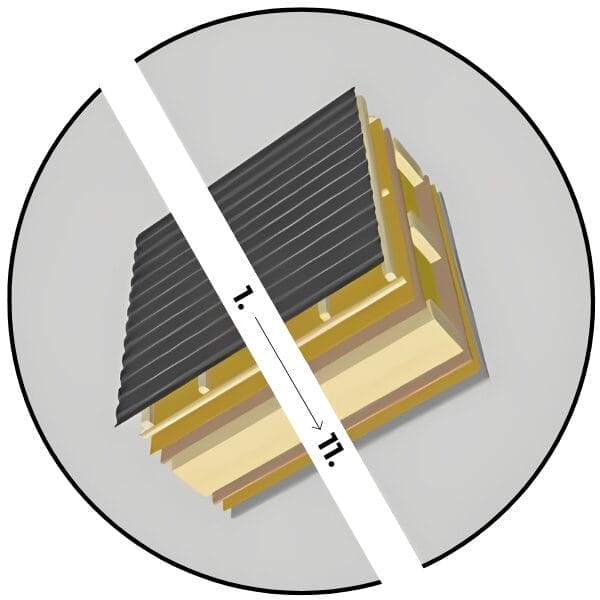

Roof
1. roofing (trapezoidal sheet, tile)
2. wooden battens
3. counter-battens
4. ventilation gap between battens
5. vapor-permeable foil
6. OSB 18 mm
7. structural frame KVH/C24 145 mm – 220 (depending on the model)
8. filling of hydrophobized mineral wool or PUR foam
9. OSB
10. vapor barrier
11. G-K board

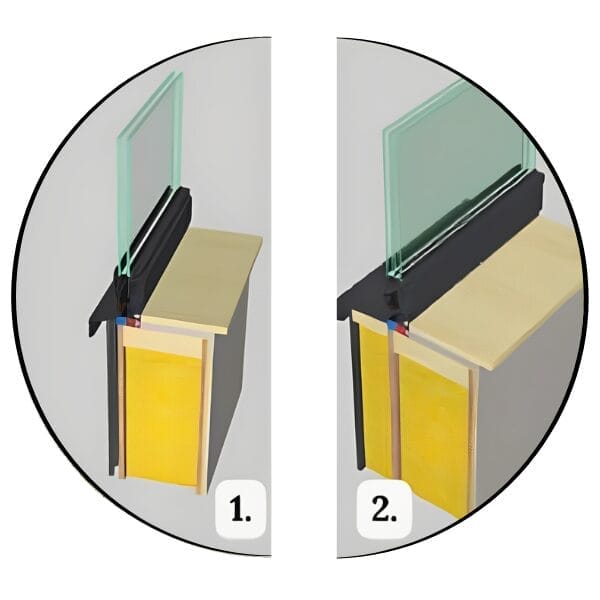

Windows
1. RECREATIONAL HOUSES:
PVC windows double-glazed package
2.FURNITURE HOUSES:
PVC windows triple-pane package
(0.9 W/(m2.K)
Floor on the ground
Floor on the ground made at the foundation slab:
1. vinyl flooring / stoneware tiles
2. concrete screed reinforced with mesh for underfloor heating
3. PE foil overlap
4. EPS 200 polystyrene flooring
5. foundation slab according to construction design
6. PE foil overlapping
7. extruded polystyrene foam XPS 15CM
8. polymer-bitumen compound x2 after priming with bitumen emulsion
9. base concrete 10 CM according to design of construction
Advantages of building a modular or frame house
For developers
We are engaged in the comprehensive construction of single-family housing estates in detached or terraced housing based on our designs or the client’s individual projects.
We make:
– commercial pavilions;
– medical, sports, entertainment infrastructure buildings;
– restaurants.
We also work with wonderful architects from Krakow who have created beautiful designs for the NomadoM line of modular homes.
On a regular basis we will add to the database of new projects and their visualizations
We are able to create for you on request an individual project in modular or frame technology Our architects will guide you from the very beginning of the project.
We are able to create a custom design for you on request in modular or frame technology. Our architects will guide you from the very beginning of the project.
MODULEO POLSKA Premium Modular Homes are year-round homes that meet all the requirements of WT2021
We prefabricate houses in a production plant located near Radom , to which we invite all our customers .The customer participates in the construction of his dream house at every stage of its implementation.
The most frequently asked question.
WHY WE?
The most important thing for us is the quality of project execution, timeliness and contact with the customer.
We strive to make each project proceed in a creative and flexible atmosphere, with customer satisfaction as the most important point.
